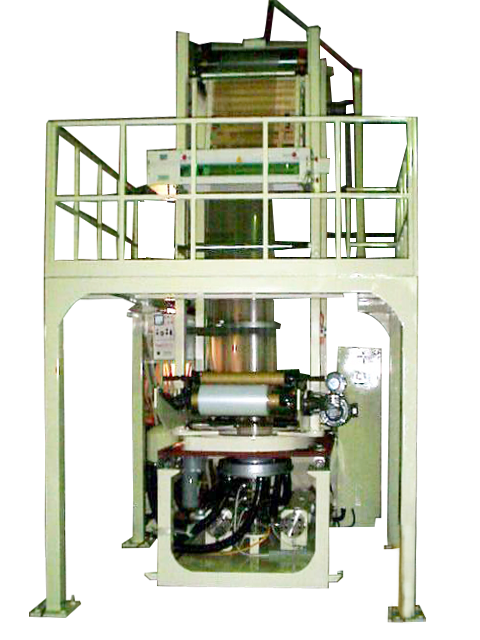

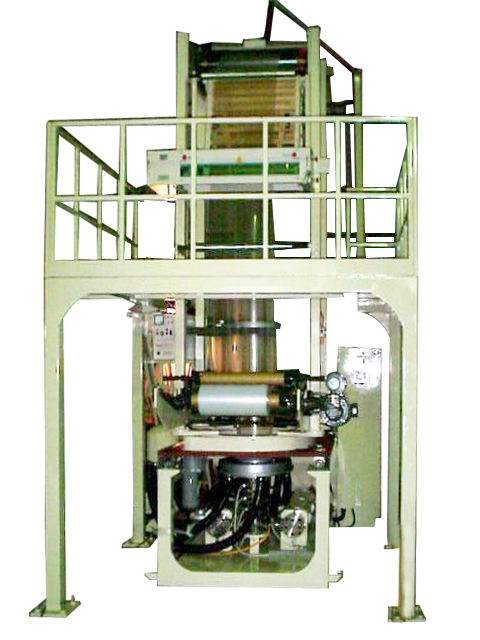

Blown Film Line
| ITEM | SPECIFICATION | MODEL | OMC-45 | OMC-40 |
| PRODUCT | MAIN PRODUCT | LDPE TUBULAR FILM | ||
| MAX WIDTH | 500 (MM) | 300 (MM) | ||
| THICKNESS | 0.01 – 0.05M | |||
| MAX OUTPUT | 35-45 Kgs/hr | 25-35 Kgs/hr | ||
| EXTRUDER | LOW BASE TYPE | |||
| MAIN MOTOR | 15HP 6P AC | 10HP 6P AC | ||
| INVERTOR CONTOL | ||||
| GEAR BOX | SCM-21 CARBON TREAT & GROUND GEAR FACE | |||
| SCREW DIA | 45 (MM) | 40 (MM) | ||
| L/D RATIO | 26/1 | |||
| MATERIAL OF SCREW | SCM-4 NITIRDER & HARD TREATMENT | |||
| MATERIAL OF BARREL | SACM-645 NITRIDED & POLISHED & HARDENED | |||
| TEMPERATURE CONTROLLER | 2 POINTS | |||
| BARREL COOLING | FAN COOLING | |||
| ADAPTOR | 1 POINT | |||
| DIE | DIE TYPE | INFLATION SPIRAL TYPE | ||
| DIE HEAD | 120 (MM) | 80 (MM) | ||
| TEMPERATURE CONTROLLER | 1 POINT | |||
| AIR RING | 1 SET | |||
| COOLING BLOWER | 3 HP | 2 HP | ||
| TAKE UP & WINDER UNIT | PINCH ROLLER | 600 (MM) | 400 (MM) | |
| TAKE UP MOTOR | 1HP, ½HP DC REDUCER | |||
| WINDER TYPE | SURFACE CONTACT MANUAL TYPE | |||
| WINDING DRUM | 600 (MM) | 400 (MM) | ||
| WINDING TORQUE MOTOR | 0.2 KG/M | 0.1 KG/M | ||
| ROTATING MOTOR | 1/8HP + 1/800 REDUCER | |||
| CONTROL PANEL | 1SET | |||
| OPTIONAL EXTRA | AUTO LOADER, SURFACE TREATER ETC…… | |||
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
