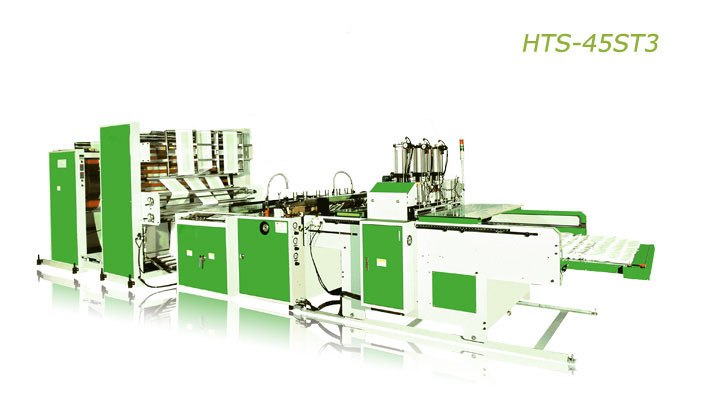

HTS-45ST3

Bag Making Machine

Specification:
MODEL HTS-45ST3
Min. width 180mm
Max. width 350mm
Min. length 380mm
Max. length 650mm
Max. width of film roll 1600mm
Sealing thickness 0.008~0.035mm
Capacity (cycle/min.) 250 cycle/min./line
Power requirement 11KW
Pneumatic requirement 8kgs/cm2:750L/min, 10HP
Machine dimension 8270X1800X2070mm

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
