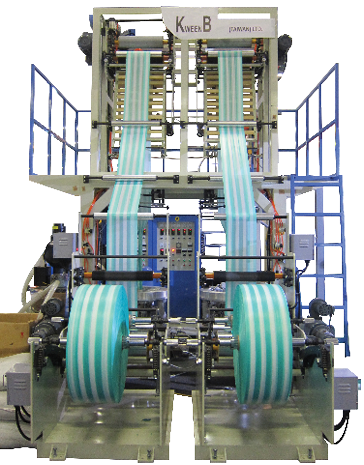

Blown Film Line
Specification
| Model | HDST42/500 | HDST45/800 |
| Production | HDPE two color stripe tubular film | |
| Width of Film (MM) | 400 | 700 |
| Thickness of Film | 0.008~0.06mm | |
| Extrusion Output (kgs/hr) | HDPE 40~60 | HDPE 50~70 |
| Extruder x 2 sets | ||
| Type of Extruder | LOW BASE TYPE | |
| Main Motor | 15HP + inverter | 20HP + inverter |
| Gear Box | Material FC 25 | |
| Type | With Forced Lubrication System & Cooler | |
| Gear Material | SCM-21 Carbon Treat & Gear Face Ground | |
| Screw | ||
| Screw Diameter | 40 | 47 |
| L/D Ratio | 28 / 1 | |
| Material | SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness | |
| Barrel | SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness | |
| Auto Thermal controller | 2 zones | |
| Barrel Cooling | With Air-Cooling Blower | |
| Die Head | Two color stripe co-extrusion type x 2 sets | |
| Die Type | Spiral Type | |
| Auto Thermal controller | 2 zones | |
| Air Ring | 1 SET | |
| Bubble Cooling | 3HP | 3HP |
| Adaptor | ||
| Screen Filter | Ø45 × 1 | Ø50 × 1 |
| Auto Thermal controller | 1 | |
| Take-up unit | ||
| Drive Motor | 1HP AC + inverter Control | |
| Pinch Roller | Ø160 × 500 (MM)L | Ø160 x 800 (MM)L |
| Take Up Tower | Tower Height Adjustable | Tower Height Adjustable |
| Winder | Manual Surface Contact Winder | |
| Winding Motor | 0.2 KG – M | 0.3 KG – M |
| Winding Roller | 500 (MM)L | 800 (MM)L |
| CONTROL PANEL | 1 SET | |
| Options : | ||
| Auto Loader | Film Width controller | |
| Embossing Roller | Air Compressor | |
| Hot Knife | Bi-metallic treatment on screw flight for | |
| Level type manual screen changer | ||
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
