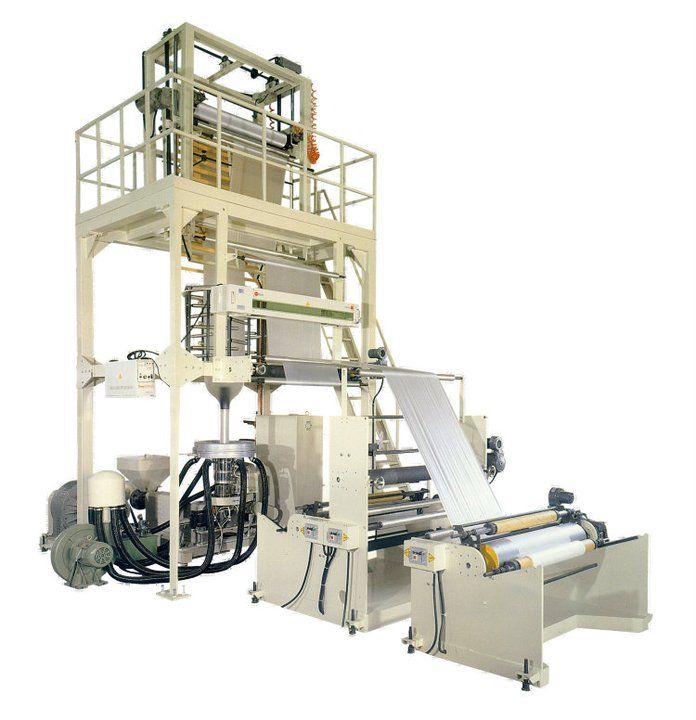

Blown Film Line
Specification :
| Model | HA-45 | HA-55 | HA-65 | HA-75 | HA-90 | ||
| Production | LDPE LLDPE HDPE Tubular film | ||||||
| Width of Film(MM) | 700 | 1100 | 1400 | 1700 | 2000 | ||
| Thickness of Film | 0.008~0.1mm for HDPE, 0.01~0.2mm for LDPE | ||||||
| Extrusion Output (kg/hr) |
LDPE | 50 – 60 | 75 – 85 | 110 – 130 | 140 – 160 | 180 – 200 | |
| HDPE | 40 – 50 | 65 – 75 | 80 – 100 | 120 – 140 | 130 – 150 | ||
| Main Motor( inverter control) | 30 HP | 40 HP | 50 HP | 60 HP | 75 HP | ||
| Screw Diameter | Ø 47 | Ø55 | Ø65 | Ø75 | Ø90 | ||
| L/D Ratio | 28 / 1 | ||||||
| Auto Thermal controller | 2 Points | 2 Points | 3 Points | 4 Points | 5 Points | ||
| Heating Capacity | 6 (KW) | 8 (KW) | |||||
21 (KW)
29 (KW)34 (KW)
Bubble Cooling5HP + inverter5 HP + inverter7.5HP + inverter10 HP + inverter10 HP + inverterTake-up unit: pneumatic clamping for pinch roller, wooden collapsing frame, gusseting boardBubble Stabilizer: Manual type bubble cageDrive Motor (inverter control)1HP AC1 HP AC2 HP AC2 HP AC2 HP ACPinch Roller (MM)LØ160 × 800Ø160 x 1200Ø160 × 1500Ø160 × 1800Ø160 x 2100Second Take-up Torque Motor0.2 KGM0.2 KGM0.2 KGM0.3 KGM0.3 KGMWinderEconomic type Manual Surface Contact WinderWinding Motor0.3 KG – M0.3 KG – M0.5 KG – M0.5 KG – M0.75 KG – MWinding Roller (MM)LØ240 × 800Ø240 x 1200Ø240 × 1500Ø240 × 2000Ø240 x 2100CONTROL PANELIsolated Type x 1 SET Digital Displaying InstrumentsOptions :Rotary DieDouble Station WinderAuto LoaderAuto WinderEmbossing RollerFilm Width controllerCorona TreaterAir CompressorHot KnifeOscillating tower
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
