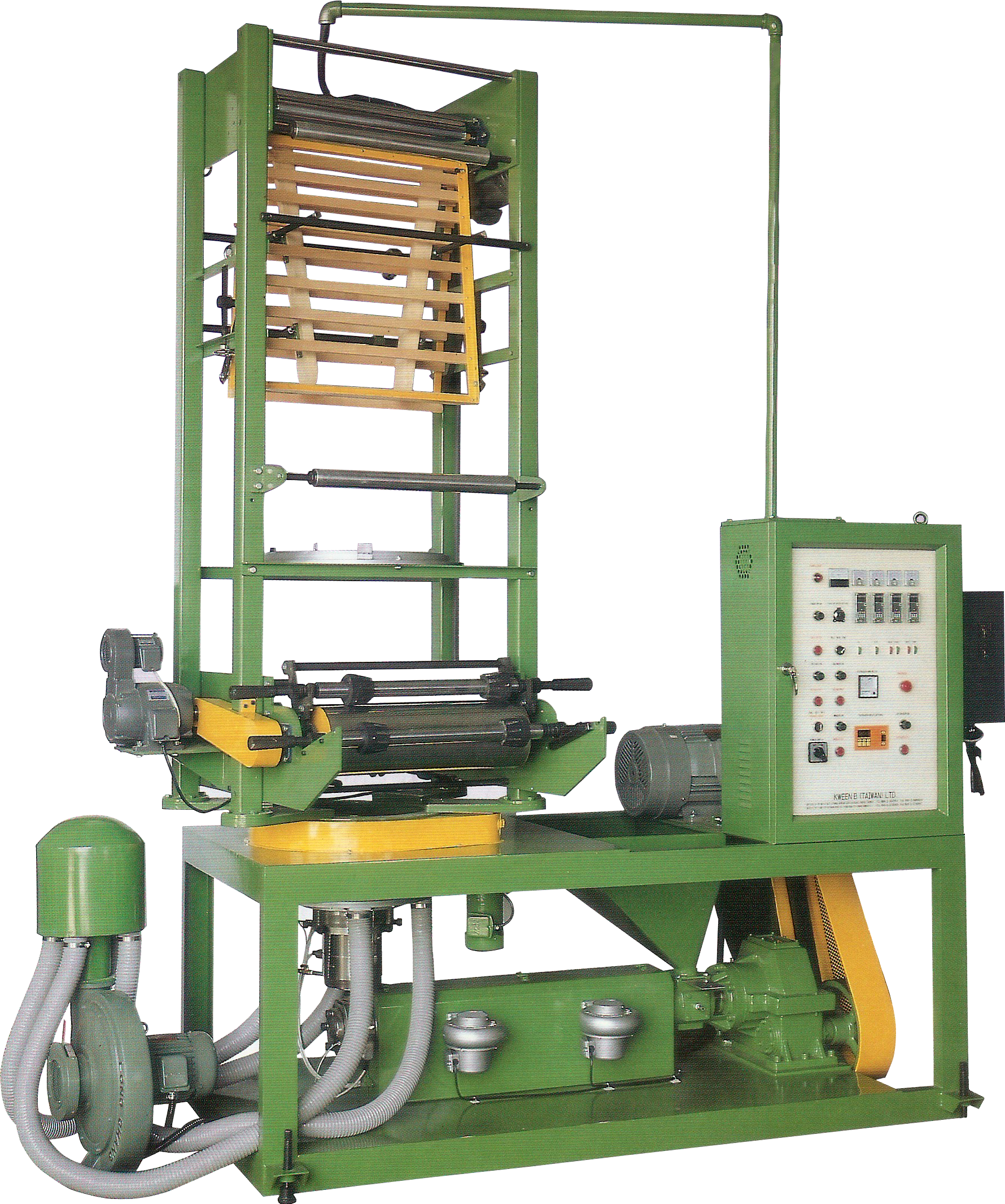

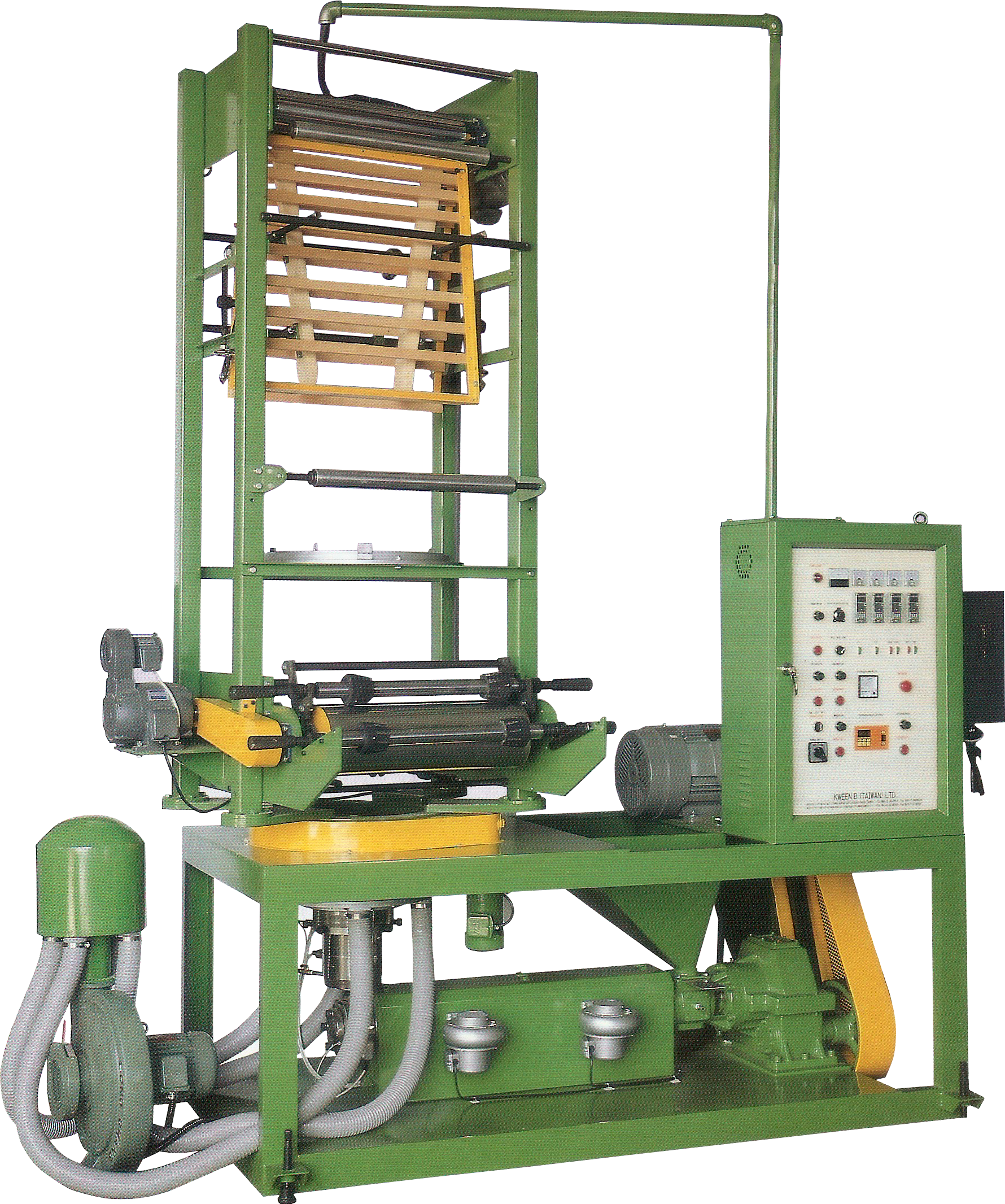

OM Series

Blown Film Line

ITEM SPECIFICATION MODEL OM-45 OM-40
PRODUCT MAIN PRODUCT LDPE TUBULAR FILM
MAX WIDTH 500 (MM) 300 (MM)
THICKNESS 0.01 – 0.05M
MAX OUTPUT 35-45 Kgs/hr 25-35 Kgs/hr
EXTRUDER LOW BASE TYPE
MAIN MOTOR 15HP 6P AC 10HP 6P AC
INVERTOR CONTOL
GEAR BOX SCM-21 CARBON TREAT & GROUND GEAR FACE
SCREW DIA 45 (MM) 40 (MM)
L/D RATIO 26/1
MATERIAL OF SCREW SCM-4 NITIRDED & HARD TREATMENT
MATERIAL OF BARREL SACM-645 NITRIDED & POLISHED & HARDENED
TEMPERATURE CONTROLLER 2 POINTS
BARREL COOLING FAN COOLING
ADAPTOR 1 POINT
DIE DIE TYPE INFLATION SPIRAL TYPE
DIE HEAD 120 (MM) 80 (MM)
TEMPERATURE CONTROLLER 1 POINT
AIR RING 1 SET
COOLING BLOWER 3 HP 2 HP
TAKE UP & WINDER UNIT PINCH ROLLER 600 (MM) 400 (MM)
TAKE UP MOTOR 1HP, ½HP DC REDUCER
WINDER TYPE SURFACE CONTACT MANUAL TYPE
WINDING DRUM 600 (MM) 400 (MM)
WINDING TORQUE MOTOR 0.2 KG/M 0.1 KG/M
ROTATING MOTOR 1/8HP + 1/800 REDUCER
CONTROL PANEL 1SET
OPTIONAL EXTRA AUTO LOADER, SURFACE TREATER ETC……



SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
