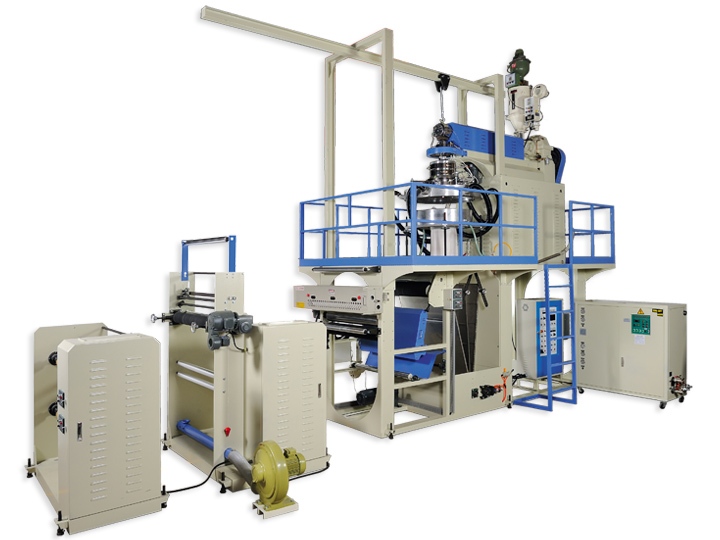

Blown Film Line
Specification
| MODEL | PP-45 | PP-55 | PP-65 | PP-75 |
| PRODUCT | POLYPROPYLENE TUBULAR FILM | |||
| WIDTH OF FILM (MM) | 100 ~ 400 | 300 ~ 550 | 400 ~ 700 | 500 ~ 850 |
| THICKNESS OF FILM | 0.02 ~ 0.06 MM | |||
| PRODUCTIVITY | 25 ~ 35 KGS/HR | 30 ~ 50 KGS/HR | 45 ~ 55 KGS/HR | 65 ~ 80 KGS/HR |
| EXTRUDER | DOWNWARD EXTRUSION TYPE | |||
| MAIN DRIVE MOTOR | A.C.15HP+INVERTER | A.C.25HP+INVERTER | A.C.30HP+INVERTER | A.C.50HP+INVERTER |
| GEAR BOX | MATERIAL FC 25 | |||
| TYPE | ONE STAGE SPEED VARIATION TYPE WITH LUBRICATION SYSTEM | |||
| GEAR MATERIAL | SCM-21 CARBON TREAT & GEAR FACE GROUND | |||
| SCREW | ||||
| SCREW DIAMETER | Ø 45 | Ø 55 | Ø 65 | Ø 75 |
| L/D RATIO | 28 / 1 | |||
| MATERIAL OF SCREW | SCM-4 NITRIDED AND HARD CHROME PLATED | |||
| BARREL | ||||
| MATERIAL OF SCREW | SACM-645 NITRIDED HONED AND POLISHED | |||
| AUTO THERMAL CONTROLLER | 2 POINTS | 2 POINTS | 3 POINTS | 4 POINTS |
| HEATING CAPACITY | 6.91 (KW) | 9.8 (KW) | 13.5 (KW) | 25 (KW) |
| DIE HEAD | ||||
| DIE LIP DIAMETER | 150 | 200 | 300 | 400 |
| AUTO THERMAL CONTROLLER | 2 | 2 | 2 | 2 |
| HEATING CAPACITY | 2.3 (KW) | 5.8 (KW) | 6 (KW) | 11 (KW) |
| AIR RING | 1 SET | |||
| COOLING BLOWER | 1/2 HP | 1/2 HP | 1 HP | 2 HP |
| WATER RING | 8 PCS | |||
| TAKE UP UNIT | ||||
| PINCH ROLLER WIDTH | 500 | 650 | 800 | 1000 |
| WINDER | TWO SHAFTS TYPE | |||
| WINDING MOTOR | 0.2 × 2 SETS 0.3 X 2 SETS | |||
| WINDING SPEED | 0 ~ 50 M/MIN | |||
| ELECTRICAL DRYING UNIT | 1 SET(1.5KW) | |||
| ELECTRICAL CONTROL PANEL | BUILT – IN TYPE | |||
| DIMENSION OF MACHINE (L × W × H) | 3000 × 1500 × 2500 | 3200 × 1800 × 3000 | 7200 × 2000 × 3000 | 7500 × 2000 × 3000 |
| GROSS WEIGHT OF MACHINE | 2000 | 3200 |
3500 |
5800 |
| POWER CONSUMPTION | 22 (KW) | 35 (KW) | 43 (KW) | 74 (KW) |
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
