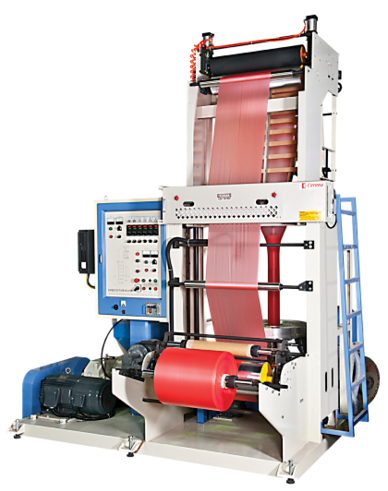

Blown Film Line
Specification :
| Model | MB40/500 | MB45/650 | MB45/800 | |
| Production | LDPE, LLDPE, HDPE Tubular film | |||
| Width of Film (MM) | 400 | 550 | 700 | |
| Thickness of Film | 0.008~0.06mm | |||
| Extrusion Output( kgs/hr ) | LDPE 25~35 | LDPE 30~40 | LDPE 40~50 | |
| HDPE 20~35 | HDPE 30~65 | HDPE 35~45 | ||
| Extruder | ||||
| Type of Extruder | LOW BASE TYPE | |||
| Main Motor | 15HP + inverter | 15HP + inverter | 20HP + inverter | |
| Gear Box | Material FC 25 | |||
| Type | With Forced Lubrication System & Cooler | |||
| Gear Material | SCM-21 Carbon Treat & Gear Face Ground | |||
| Screw | ||||
| Screw Diameter | Ø 47 | |||
| L/D Ratio | 26 / 1 ( with two mixing section & bi-metallic treatment on screw flight ) | |||
| Material | SACM-645 Nitrided, Polished and Hard Chrome Plated Hardness | |||
| Barrel | SACM-645 Nitrided, Honed and Hard Chrome Plated Hardness | |||
| Auto Thermal controller | 2 zones | |||
| Barrel Cooling | With Air-Cooling Blower | |||
| Die Head | ||||
| Die Type | Spiral Type | |||
| Auto Thermal controller | 1 zone | |||
| Air Ring | 1 SET | |||
| Bubble Cooling | 3HP | |||
| Adaptor | ||||
| Screen Filter | Ø50 × 1 | Ø50 × 1 | Ø50 × 1 | |
| Auto Thermal controller |
1 |
|||
| Take-up unit | ||||
| Drive Motor | 1HP AC + inverter Control | |||
| Pinch Roller | Ø160 × 500 (MM)L | Ø160 x 650 (MM)L | Ø160 × 800 (MM)L | |
| Take Up Tower | Tower Fix Type | Tower Height Adjustable | Tower Height Adjustable | |
| Winder | Manual Surface Contact Winder | |||
| Winding Motor | 0.3 KG – M | 0.3 KG – M | 0.3 KG – M | |
| Winding Roller | 500 (MM)L | 650 (MM)L | 800 (MM)L | |
| CONTROL PANEL | 1 SET | |||
| Dimension of Machine (L x M x H) | 2610 × 1700 × 3600 | 2760 x 1700 x 3600 | 2900 × 1700 × 3600 | |
| Options : | ||||
| Auto Loader | Double Station Winder | |||
| Embossing Roller | Winder upgraded to 1000mm winding dia. | |||
| Corona Treater | Bubble controller | |||
| Hot Knife | Air Compressor | |||
| Bi-metallic treatment on screw flight | Level type manual screen changer | |||
SPECIFICATION FOR REFERENCE ONLY
