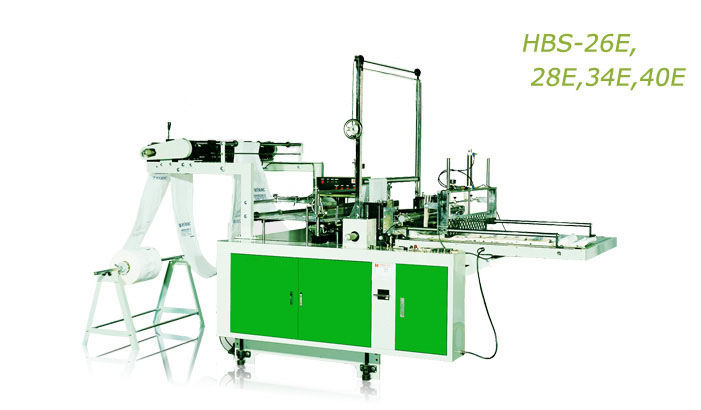

Bag Making Machines
| MODEL | HBS-26E | HBS-28E | HBS-34E | HBS-40E |
| Max. bag width | 650mm(25.60″) | 700mm(47.30″) | 850mm(33.50″) | 1000mm(39.40″) |
| Max. bag length | 1000mm(39.40″) | 1200mm(47.30″) | 1200mm(47.30″) | 1500mm(59.00″) |
| Film thickness | 0.008~0.15mm | 0.008~1.5mm | 0.008~0.15mm | 0.008~0.15mm |
| Length tolerance | ±1mm | ±1mm | ±1mm | ±1mm |
| Production speed | 40~120 cycle/min./line | 40~120 cycle/min./line | 40~100 cycle/min./line | 40~100 cycle/min./line |
| Driving motor(AC) | 1HP | 1HP | 2HP | 2HP |
| Heater requirement | 1000w | 1200w | 2000w | 2000w |
| Electrical requirement | 1850w | 2850w | 3600w | 3600w |
| Machine dimension | 1800X1320X1580mm | 1800X1600X1680mm | 1800X1680X1680mm | 1800X1830X1680mm |
| Packing dimension | 1820X1450X1600mm | 1820X1640X1850mm | 1800X1730X1850mm | 1880X1910X1850mm |
| Gross Weight | 630kgs | 700kgs | 870kgs | 950kgs |
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
