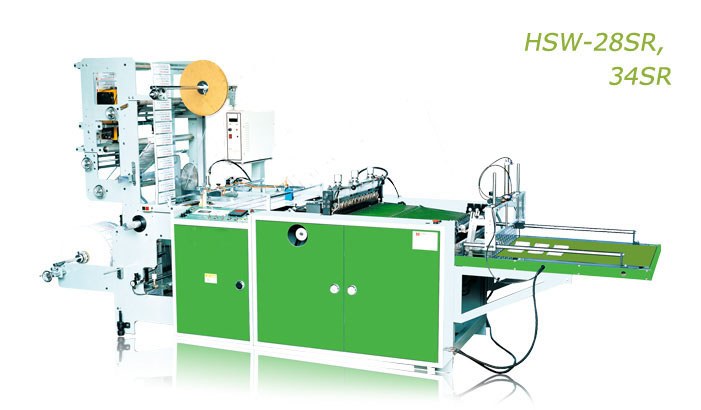

Bag Making Machines
| MODEL | HSW-28SR | HSW-34SR |
| Max. bag width | 700mm(27.60″) | 850mm(33.50″) |
| Max. bag length | 700mm(27.60″) | 850mm(33.50″) |
| Film thickness | 0.008~0.1mm | 0.008~0.1mm |
| Production speed | 60~180 cycle/min./line | 60~180 cycle/min./line |
| Driving motor(AC) | 1HP | 2HP |
| Heater capacity | 1600w | 2000w |
| Electrical requirement | 6700w | 7000w |
| Machine dimension | 3800X1800X2000mm | 3800X2000X2000mm |
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
