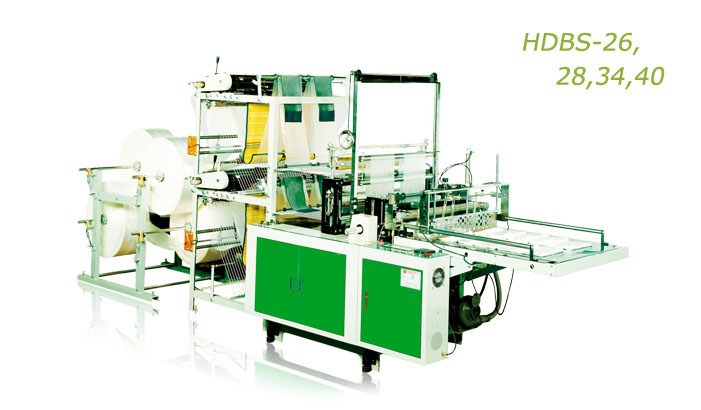

HDBS-26, 28, 34, 40

Bag Making Machines

MODEL HDBS-26

HDBS-28
HDBS-28
HDBS-28
Max. bag width 325mmX4, 650mmX2
325mmX4, 650mmX2
325mmX4, 650mmX2
325mmX4, 650mmX2
Max. bag length 1000mm
1000mm
1000mm
1000mm
Film thickness 0.008~0.15mm
0.008~0.15mm
0.008~0.15mm
0.008~0.15mm
Length tolerance ±1mm
±1mm
±1mm
±1mm
Production speed 40~120 cycle/min./line
40~120 cycle/min./line
40~120 cycle/min./line
40~120 cycle/min./line
Driving motor(AC) 1HP
1HP
1HP
1HP
Heater capacity 2400w
2400w
2400w
2400w
Electrical requirement 5800w
5800w
5800w
5800w
Machine dimension 4200X1300X1720mm
4200X1300X1720mm
4200X1300X1720mm
4200X1300X1720mm
Packing dimension 2810X1510X2120mm
2810X1510X2120mm
2810X1510X2120mm
2810X1510X2120mm
Gross Weight 850kgs
850kgs
850kgs
850kgs
Air volume pressure 7kg/cm2,30 L/min
7kg/cm2,30 L/min
7kg/cm2,30 L/min
7kg/cm2,30 L/min



HDBS-26,28,34,40

SPECIFICATION FOR REFERENCE ONLY

WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
