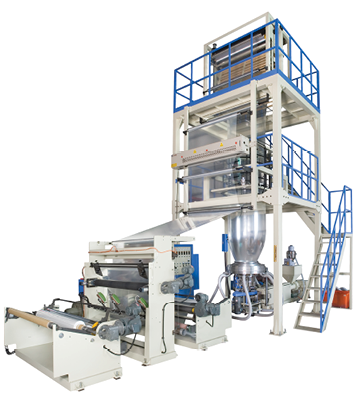

Blown Film Line
| |
Specification :
| Model |
HAS-45 |
HAS-55 |
HAS-65 |
HAS-75 |
HAS-90 |
| Production |
LDPE LLDPE HDPE Tubular film |
| Width of Film(MM) |
700 |
1100 |
1400 |
1700 |
2000 |
| Thickness of Film |
0.008~0.1mm for HDPE, 0.01~0.2mm for LDPE |
Extrusion Output
(kg/hr) |
LDPE |
60 – 70 |
80 – 90 |
120 – 140 |
150 – 170 |
230 – 250 |
| HDPE |
50 – 60 |
70 – 80 |
100 – 120 |
120 – 150 |
170 – 200 |
| Main Motor( inverter control) |
30 HP |
40 HP |
60 HP |
75 HP |
100 HP |
| Screw Diameter |
Ø 47 |
Ø55 |
Ø65 |
Ø75 |
Ø90 |
| L/D Ratio |
30 / 1 |
| Auto Thermal controller |
3 Points |
3 Points |
3 Points |
4 Points |
5 Points |
| Heating Capacity |
7 (KW) |
9 (KW) |
13.5 (KW)
|
18 (KW) |
25.5 (KW) |
| Bubble Cooling |
5HP + inverter |
5 HP + inverter |
7.5HP + inverter |
10 HP + inverter |
10 HP + inverter |
| Take-up unit: pneumatic clamping for pinch roller, wooden collapsing frame, gusseting board |
| Bubble Stabilizer: Bakelite Type, height and diameter adjustable by motor |
| Drive Motor (inverter control) |
1HP AC |
1 HP AC |
2 HP AC |
2 HP AC |
2 HP AC |
| Pinch Roller (MM)L |
Ø162 × 800 |
Ø162 x 1200 |
Ø162 × 1500 |
Ø162 × 1800 |
Ø162 x 2100 |
| Second Take-up Torque Motor |
0.2 KGM |
0.2 KGM |
0.2 KGM |
0.3 KGM |
0.3 KGM |
| Winder |
Deluxe type Manual Surface Contact Winder |
| Winding Motor |
0.3 KG – M |
0.3 KG – M |
0.5 KG – M |
0.5 KG – M |
0.75 KG – M |
| Winding Roller (MM)L |
Ø240 × 800 |
Ø240 x 1200 |
Ø240 × 1500 |
Ø240 × 2000 |
Ø240 x 2100 |
| CONTROL PANEL |
Isolated Type x 1 SET Digital Displaying Instruments |
| Options : |
| Rotary Die |
Double Station Winder |
| Auto Loader |
Auto Winder |
| Embossing Roller |
Film Width controller |
| Corona Treater |
Air Compressor |
| Hot Knife |
Oscillating tower |
| |
|
|
|
|
|
|
|
|
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
|
