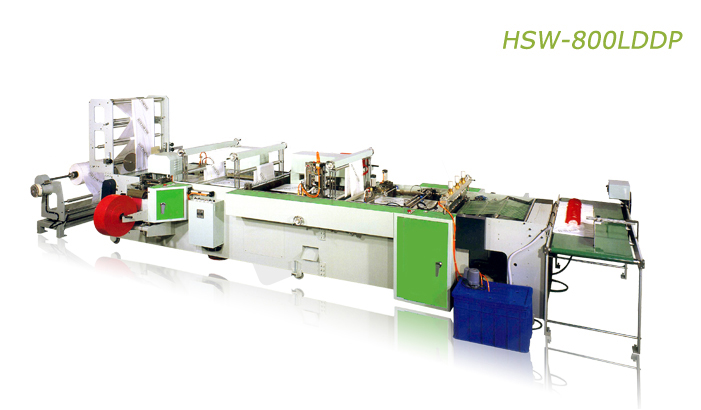

Bag Making Machine
| MODEL | HSW-800LDDP |
| Min. width | 250mm |
| Max. width | 650mm |
| Min. length | 250mm |
| Max. length | 650mm |
| Top Gusset | 70-75mm |
| Bottom Gusset | up to 85mm |
| Max. Production Speed(cycle/min.) | 40-80 |
| Thickness of film | 0.03-0.09 |
| Heaters | 2.6KWx1, 0.8KWx2, 0.3KWx4, 0.4KWx8 |
| Power Required | 8.8KW |
| Machine Dimensions | 7600X3200X1850mm |
| Machine Weight | 4000kg |
| Packing Size | 5800X2300X2000mm |
| Gross Weight | 4500kg |
| Air Compressor (not Included) | 7.5HP |
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
