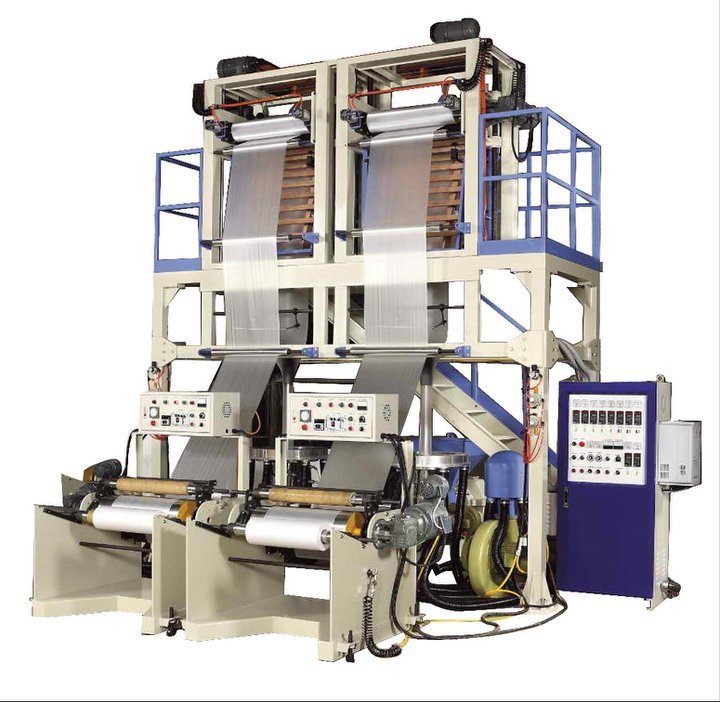

Blown Film Line
| MODEL | DMS-55/500 | DMS-55/800 |
| PRODUCT | LDPE / HDPE / LLDPE TUBULAR FILM | |
| WIDTH OF FILM (MM) | 450 MM | 700 MM |
| THICKNESS OF FILM | 0.008~0.10 MM | |
| MAX EXTRUSION OUTPUT | LDPE / 55~65 KGS/HR | LDPE / 55~65 KGS/HR |
| HDPE / 50~55 KGS/HR | HDPE / 50~55 KGS/HR | |
| EXTRUDER | ||
| TYPE OF EXTRUDER | LOW BASE TYPE | |
| MAIN DRIVE MOTOR | A.C.30HP+INVERTER | A.C.30HP+INVERTER |
| GEAR BOX | MATERIAL FC 25 | |
| TYPE | ONE STAGE SPEED VARIATION TYPE WITH LUBRICATION SYSTEM | |
| GEAR MATERIAL | SCM-21 CARBON TREAT & GEAR FACE GROUND | |
| SCREW | ||
| SCREW DIAMETER | Ø 55 | Ø 55 |
| L/D RATIO | 30 / 1 | 30 / 1 |
| MATERIAL OF SCREW | SACM-645 NITRIDED,POLISHED AND HARD CHROME PLATED | |
| BARREL | ||
| MATERIAL OF SCREW | SACM-645 NITRIDED HONED AND POLISHED | |
| AUTO THERMAL CONTROLLER | 3 ZONES | 3 ZONES |
| HEATING CAPACITY | 4 (KW) | 8 (KW) |
| BARREL COOLING | WITH BLOWER AIR COOLED | |
| DIE HEAD | ||
| DIE TYPE | INFLATION SPIRAL TYPE | |
| AUTO THERMAL CONTROLLER | 2 ZONES × 2 | |
| HEATING CAPACITY | 1.4 (KW) × 2 | 1.6 (KW) × 2 |
| AIR RING | 1 SET × 2 | |
| BUBBLE COOLING BLOWER | 3 HP × 2SETS | 3 HP × 2SETS |
| ADAPTOR | ||
| SCREEN FILTER | Ø50 × 1 | Ø50 × 1 |
| AUTO THERMAL CONTROLLER | 1 | |
| TAKE – UP UNIT | ||
| DRIVE MOTOR | 1/2HP AC-1/10 +INVERTER CONTROL× 2 | 1HP AC-1/10 +INVERTER CONTROL× 2 |
| PINCH ROLLER | Ø162 × 500 (MM)L× 2 | Ø162 × 800 (MM)L× 2 |
| ELEVATION MOTOR | 1HP × 1/20 ×2SET | |
| WINDER | SURFACE WINDER | |
| WINDING MOTOR | 0.2 KG – M× 2 | 0.3 KG – M× 2 |
| WINDING ROLLER | Ø250 × 500 (MM)L | Ø250 × 800 (MM)L |
| CONTROL PANEL | 1 SET | |
| DIMENSION OF MACHINE (L × W × H) | 2610 × 1700 × 3600 | 2860 × 1700 × 3600 |
| OPTIONAL | AUTO LOADER. EMBOSSING ROLLER. SURFACE TREATER. ROTARY DIE .IRIS. FILM WIDTH CONTROLLER. AIR COMPRESSOR | |
SPECIFICATION FOR REFERENCE ONLY
WE RESERVE THE RIGHT TO ALTER OR AMEND THE DESIGN
